What Is a Prototype SMT Stencil? Lead Time, File Requirements, and Design Tips

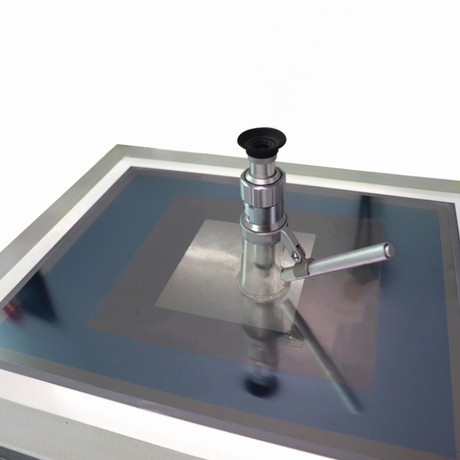

A prototype SMT stencil is a precision metal foil (usually stainless steel) with laser-cut apertures that match the solder-paste pads on a new or revised printed circuit board. Unlike production stencils intended for thousands of cycles, prototype stencils are optimized for speed, cost, and design flexibility during new-product introduction, engineering validation, or small-batch builds. They allow engineers to deposit controlled volumes of solder paste quickly and repeatably instead of relying on hand soldering or syringe dispensing, which improves joint quality and shortens the overall prototype assembly cycle.
Most prototype stencils are laser-cut frameless foils, although framed versions are available when the printer requires them. Thicknesses commonly range from 0.08 mm to 0.15 mm, selected according to the smallest component pitch and required paste volume. Optional electropolishing or nano-coating can be added even on prototype quantities to improve paste release on fine-pitch features.
Lead time is one of the main reasons teams order dedicated prototype stencils. With modern fiber-laser systems and in-house processing, standard prototype foils can be produced in 1–3 days after clean data is received. Many suppliers offer same-day or next-day turnaround for straightforward single-layer paste designs when files arrive early in the business day. More complex requests—step stencils, multi-thickness zones, special coatings, or large panel sizes—may extend to 3–5 days. Confirming data completeness at the quote stage is the single biggest factor that keeps lead times short.
Clear, complete data is essential for accurate and fast fabrication. The minimum and preferred files are:
Primary file: Gerber paste (cream) layer in RS-274X (Extended Gerber) format. This layer defines every aperture location and size.
Board or panel outline (Gerber or DXF) so the foil size and registration can be set correctly.
Fiducial locations if optical alignment will be used.
Any existing aperture modifications already decided by the process team (home-plate shapes, reduced openings, window panes, etc.).
Desired foil thickness, framed or frameless preference, and any surface treatment (electropolish, nano-coating).
Quantity and required delivery date.
Additional helpful information includes the smallest component pitch, critical packages (BGA, QFN, 0201/01005), and notes about mixed-technology boards that may need step or multi-level thickness. Incomplete or outdated Gerber data is the most common cause of delay or aperture errors, so always send the latest revision and confirm units (metric preferred).
Start with correct thickness
Fine-pitch devices (≤0.4 mm) usually need 0.08–0.10 mm foil. Larger passives and connectors often prefer 0.12–0.15 mm. When both exist on one board, evaluate a step stencil early rather than compromising the entire design.
Respect area ratio and aspect ratio
Aim for an area ratio ≥0.66 and aspect ratio ≥1.5 for reliable paste release. On prototypes it is often better to reduce aperture size slightly (5–15 %) on fine-pitch pads than to risk bridging.
Keep aperture shapes simple unless process data supports otherwise
Rectangular or home-plate openings work well for most QFNs and BGAs. Complex shapes should be validated on the first prototype before locking them for production.
Include fiducials and tooling features
Even manual prototype printing benefits from clear fiducials. Add them in the paste layer or as separate copper features so the stencil can be aligned quickly and repeatably.
Allow for panelization and handling
If multiple boards will be printed on one panel, include the full panel outline and any break-away or rail features. Leave adequate border around the image for clamping or framing.
Plan for iteration
Prototype stencils are inexpensive relative to board cost. Order two slightly different aperture versions in the first round if paste volume is uncertain; the second iteration can then lock the final design.
Specify surface treatment when fine pitch is present
Nano-coating or electropolishing on a prototype stencil often pays for itself by reducing cleaning frequency and improving first-pass yield on 0.4 mm and finer devices.
Hand soldering or uncontrolled dispensing introduces variation that can mask real design issues. A laser-cut prototype stencil produces paste deposits that closely match future production conditions, allowing meaningful validation of pad design, component placement, and reflow profile. Combined with rapid 1–3 day turnaround, it compresses the feedback loop between layout and physical assembly.
When requesting a prototype SMT stencil, provide clean Gerber paste data, state the required thickness and format, and note any fine-pitch or mixed-component challenges. A supplier that controls laser cutting, inspection, and optional coatings in-house can deliver a production-representative foil quickly, helping teams move from design to reliable prototype assemblies with minimal delay.
