In high-density PCB assembly, one of the most persistent challenges is controlling solder paste volume across components of vastly different sizes and heights on the same board. Large BGAs, power devices, and connectors need sufficient paste to avoid cold joints and voids, while 0201/01005 passives and fine-pitch QFNs require minimal paste to prevent bridging and solder balls.
A standard flat stencil forces a compromise — resulting in either excessive solder on small components or insufficient solder on large ones. 3D Step Stencils and Dual-Process Step Stencils eliminate this trade-off by enabling precise, multi-level thickness control (and, in the dual-process version, micro-aperture optimization) on a single stencil. The result: accurate solder volume for every component in one print cycle, higher first-pass yields, and lower total cost of ownership.
This article explains the technology, presents practical production case studies, and shows how Yinhai Electronics’ solutions deliver measurable results.
High-density designs typically mix:
Large components (BGA, QFP, connectors, power MOSFETs) that require higher paste volume
Ultra-small components (0201, 01005, 0.3–0.4 mm pitch devices) that need tightly controlled, lower volume
Using a single-thickness stencil leads to:
Excessive solder → bridging, solder balls, shorts on fine-pitch areas
Insufficient solder → cold joints, voids, weak mechanical strength on large pads
Traditional workarounds (dual printing, multiple stencils, or process compromises) increase cycle time, labor, and defect risk. Step technology solves the root cause at the stencil level.

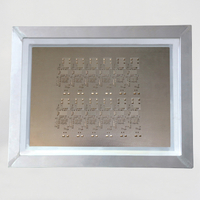

Uses precision laser cutting + controlled forming to create multiple thickness levels (typically 1–3 or more) on one foil:
Thick zones (0.12–0.30 mm) for high-volume pads
Thin zones (0.05–0.10 mm) for fine-pitch and miniature components
Smooth, stress-free transitions to protect the squeegee and ensure uniform paste deposition
Thickness tolerance can reach ±0.005 mm, with aperture accuracy of ±0.01 mm.
Combines two advanced processes on the same stencil:
Multi-level step thickness control (for volume differentiation)
Precision micro-aperture / grid structures (for ultra-fine pads and improved paste release)
This hybrid approach is especially effective for complex boards that simultaneously demand accurate volume control and reliable printing on very small or low-area-ratio apertures. Optional nano-coating further enhances release and extends cleaning intervals.
Both solutions are fully compatible with standard SMT printers (DEK, MPM, Panasonic, Fuji, etc.) and require no equipment modification.
Challenge: High-density board with large application processor BGA + numerous 01005 passives and 0.35 mm pitch QFNs. Flat 0.12 mm stencil caused bridging on fine-pitch areas and occasional insufficient solder on BGA corners. Solution: 3D Step Stencil with base 0.10 mm, local step-up to 0.18 mm under the BGA, and step-down zones for 01005 clusters. Optional nano-coating applied. Results:
Bridging defects reduced by >80%
BGA void rate dropped significantly
Single-print process replaced previous dual-print approach
First-pass yield improved from ~96% to >99.5%
Line throughput increased by approximately 40%
Challenge: Mixed power devices (large pads requiring high volume) and fine-pitch control ICs on a high-reliability automotive board. Strict quality requirements (zero bridging, minimal voids). Solution: Dual-Process Step Stencil — multi-level thickness for power vs. control zones + optimized micro-apertures on fine-pitch areas + nano-coating for consistent release. Results:
Cold-joint and void issues on power components virtually eliminated
Fine-pitch bridging reduced to near zero
Cleaning frequency extended from every 5–8 boards to every 30+ boards
Passed automotive reliability testing with margin
Overall process cost reduced through fewer defects and less downtime
Challenge: Large high-pin-count BGAs and Chiplet-style packages alongside dense passive arrays. Extreme density and thermal requirements. Solution: Multi-level 3D Step Stencil with three thickness zones and reinforced transition design for long print runs. Results:
Uniform paste deposits across all component types
Stable performance over tens of thousands of cycles
Enabled reliable high-volume production without secondary printing or rework spikes
These cases illustrate a consistent pattern: precise volume control at the stencil level delivers higher yields, simpler processes, and lower total cost.
Step-height accuracy ±0.01 mm (up to ±0.005 mm on advanced 3D designs)
Aperture positional accuracy ±0.005 mm
Smooth, stress-relieved transitions that protect squeegees and maintain tension uniformity
Optional nano-coating for superior paste release and extended life
Full customization of step levels, heights, aperture shapes, and foil thickness
Rapid sampling (1–3 days standard; urgent orders as fast as 6 hours)
Factory-direct supply with ISO 9001 quality system and complete traceability
Requirement | Recommended Solution | Why It Fits |
|---|---|---|
Multi-height components, volume control | 3D Step Stencil | Clean multi-level thickness differentiation |
Volume control + ultra-fine / low AR pads | Dual-Process Step Stencil | Combines steps with micro-aperture optimization |
Highest release & longest cleaning cycles | Either + nano-coating | Maximum process window and stencil life |
High-mix or rapid prototyping | Fully customized 3D / Dual-Process | Fast turnaround and design flexibility |
3D Step Stencils and Dual-Process Step Stencils are no longer niche solutions — they are essential tools for any high-density or mixed-technology PCB that suffers from the classic “too much / too little solder” problem. By solving volume control at the source, they simplify the process, raise yields, and reduce overall manufacturing cost.
Yinhai Electronics specializes in high-precision step and dual-process stencils backed by advanced laser processing, rigorous inspection, and fast, factory-direct service.
Ready to eliminate excessive and insufficient solder issues on your boards? Share your Gerber files and component list for a free technical recommendation and sample evaluation.
