In modern SMT production, the reflow oven is where the final solder joints are formed. Yet many process engineers still underestimate one of the most effective tools for protecting yield at this stage: the reflow fixture (also called reflow carrier, reflow pallet, or reflow tray).
A well-designed reflow fixture does far more than simply hold the board. It controls warpage, stabilizes temperature distribution, protects sensitive components, and enables reliable processing of flexible or irregular boards. When selected and designed correctly, it can deliver measurable improvements in first-pass yield and reduce costly defects such as tombstoning, open joints, and component shift.
This guide explains the core functions of SMT reflow fixtures and provides a practical framework for selecting the right solution for your process.
Thin or large PCBs, high-Tg materials, and boards with heavy copper or asymmetric stack-ups tend to warp during the rapid temperature ramp of reflow. Warpage leads to poor contact with the conveyor, uneven heating, and open or weak solder joints.
A properly designed fixture supports the board across critical areas, limiting deformation and keeping the PCB flat throughout the thermal cycle.
Fixtures with good thermal mass and strategic openings help equalize temperature across the board. This is especially valuable for mixed-technology assemblies that contain both large thermal masses (connectors, power devices) and small passive components.
Better thermal uniformity reduces the risk of tombstoning, insufficient wetting, and voids.
Prevents tall or heavy components from shifting or falling during conveyor movement
Shields delicate areas or selective-solder regions when needed
Supports flexible printed circuits (FPC) and rigid-flex boards that would otherwise deform or lift
Magnetic reflow trays and custom carriers make it possible to process FPCs, odd-shaped boards, and panels that cannot be run reliably on a standard mesh belt or chain conveyor.
Fixtures designed with locating pins, nests, or machined pockets ensure consistent board positioning from one cycle to the next, improving process capability and simplifying quality control.
Type | Main Advantages | Typical Applications |
|---|---|---|

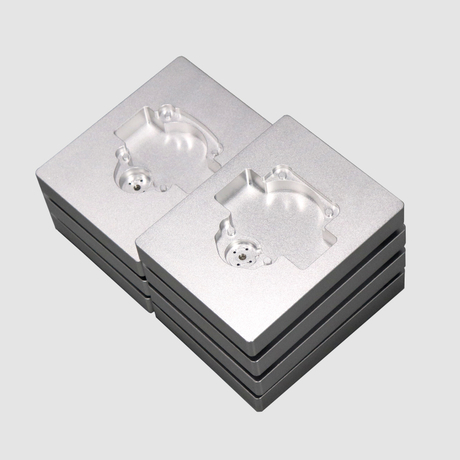

Aluminum Alloy Carriers | Lightweight, good thermal conductivity, durable | Standard rigid PCBs, high-volume lines |
Magnetic Reflow Trays | Excellent for FPCs and thin boards, easy loading | Flexible circuits, rigid-flex, wearables |

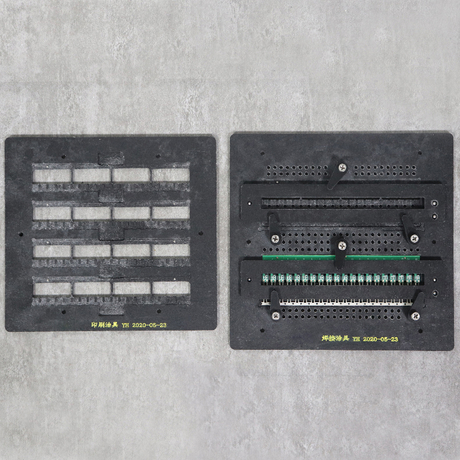

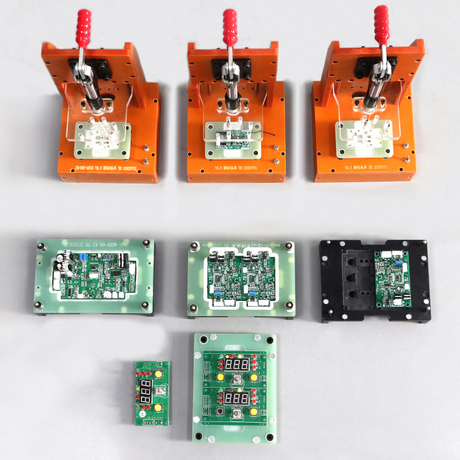

Custom Nested Fixtures | Precise location, multi-board or special shapes | Complex assemblies, high-mix production |
High-Temperature Composite | Lower thermal mass, faster cooling | Temperature-sensitive processes |
Many modern fixtures combine aluminum frames with magnetic inserts or high-temperature plastics to balance performance and cost.
When choosing or designing a reflow fixture, evaluate these factors systematically:
Material and Temperature Resistance The fixture must withstand peak reflow temperatures (typically 240–260 °C or higher for lead-free) without deformation or outgassing. Aerospace-grade aluminum alloys and high-temperature magnets are preferred for long-term stability.
Thermal Mass and Open Area Too much thermal mass can slow the heating rate and increase energy use. Strategic cut-outs and optimized thickness help maintain a good balance between support and thermal response.
Board Support and Locating Features
Support points should be placed under non-critical areas or dense component zones
Locating pins or pockets must match board tooling holes or edges accurately
Avoid blocking airflow or creating hot/cold spots
Compatibility with Your Oven and Handling System Confirm dimensions, edge clearance, and conveyor compatibility (mesh belt, chain, or center-board support). The fixture should load and unload easily without excessive operator handling time.
Cleaning and Maintenance Surfaces should resist flux residue buildup and allow quick cleaning. Smooth finishes and appropriate coatings extend service life.
Cost vs. Lifetime A higher-quality fixture that lasts tens of thousands of cycles and reduces defects usually delivers a lower total cost of ownership than cheaper alternatives that warp or wear quickly.
Board warpage causing open joints on large BGAs
FPC lifting or wrinkling during reflow
Component shift on tall connectors or heavy inductors
Uneven heating on mixed-technology boards
Difficulty processing small or irregular panels
In each case, a correctly designed fixture addresses the root mechanical or thermal issue rather than forcing the process engineer to compensate with oven profile changes alone.
Yinhai manufactures a full range of precision SMT fixtures, including aluminum reflow carriers, magnetic reflow trays, and fully customized solutions. Our capabilities include:
High-precision CNC machining of aluminum and specialty materials
High-temperature magnetic systems suitable for lead-free reflow
Rapid prototyping and design collaboration based on customer PCB data
Durable, production-ready fixtures with consistent dimensional accuracy
Whether you need a standard magnetic tray for FPC processing or a complex multi-board carrier for high-volume automotive production, we can engineer a solution that improves yield and process stability.
Identify the main problem you need to solve (warpage, FPC handling, component support, thermal uniformity).
Confirm maximum reflow temperature and required cycle life.
Evaluate board size, thickness, and critical component locations.
Decide between standard magnetic trays, aluminum carriers, or fully custom designs.
Request a design review or prototype to validate fit and thermal performance before full production.
An SMT reflow fixture is not merely a holding device — it is an active process tool that protects yield at the most critical stage of soldering. By controlling warpage, improving thermal consistency, and enabling reliable handling of difficult boards, the right fixture delivers higher first-pass yield and lower overall manufacturing cost.
If your current process shows signs of warpage-related defects, FPC handling issues, or inconsistent reflow results, a properly specified reflow fixture is often the most direct and cost-effective improvement.
Contact the Yinhai team for a free application review. Share your PCB data and process challenges, and we will recommend or design a fixture solution tailored to your line.
